32201 Shelf Support 5mm pegs 3/4″ or 1″ shelf


Heavy Duty Institutional​ Locking Shelf Support made of strong polycarbonate material. Shelf Clip has dual 5mm pegs spaced 32mm apart vertically and is designed to be used with 3/4″ and 1″ thick shelving. Optional screw slot for securing shelf in place. Commonly found in commercial and institutional furniture applications.

*Formerly Part #3220

Certified to ANSI/BHMA Standard A156.9 – 2015

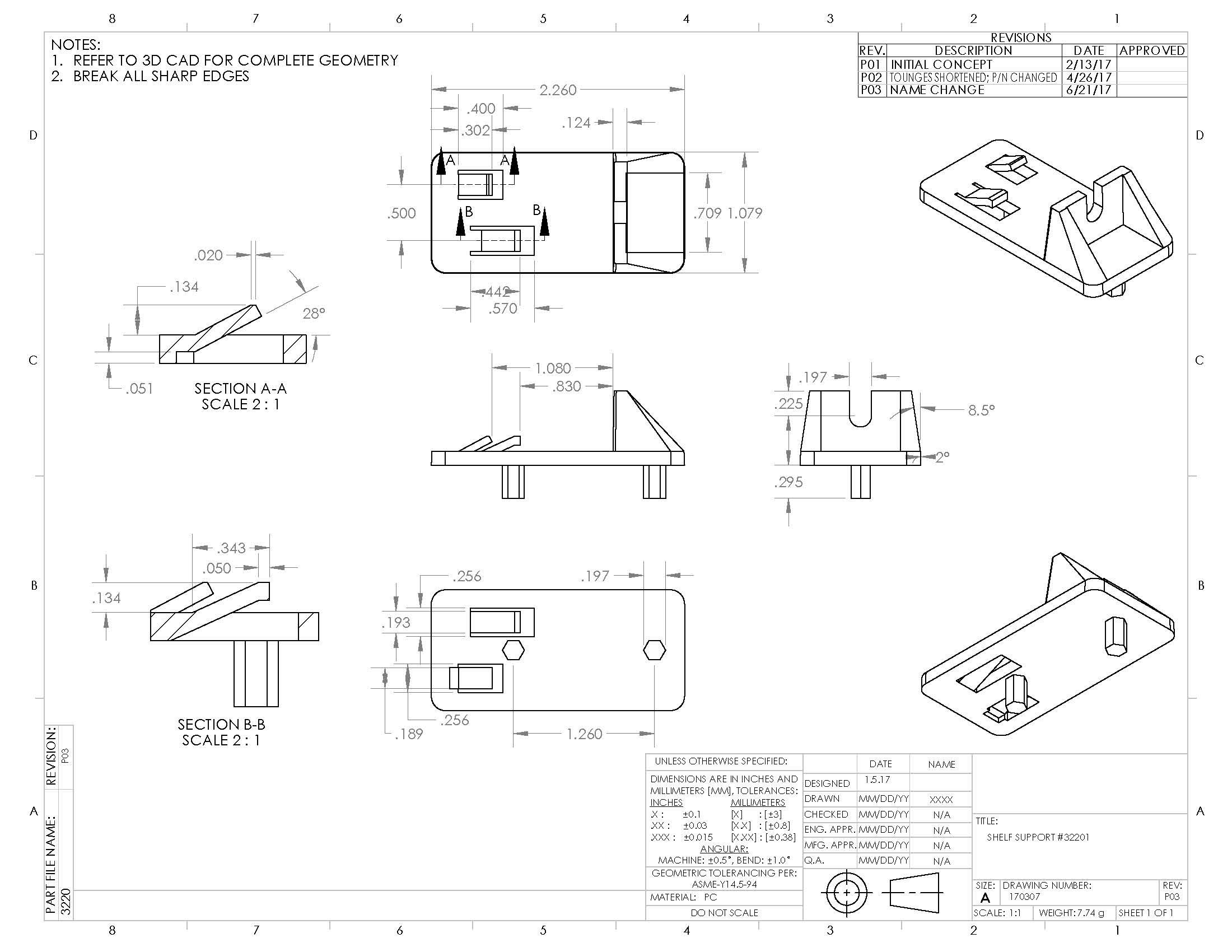

32201 FINAL Drawing
